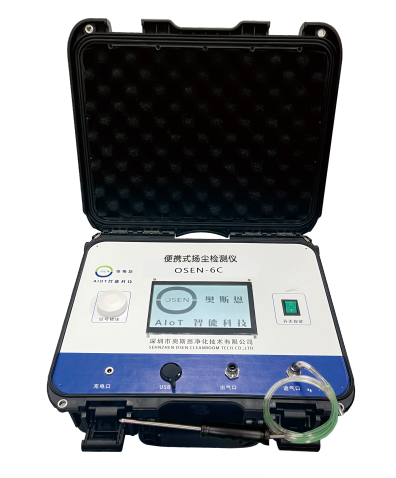

PORTABLE DUST DETECTOR
The portable dust particle detector is a light scattering counting-based device designed for real-time monitoring of airborne particulate matter PM2.5, PM10, TSP. Featuring a lightweight design and compact size for easy portability, it comes with a high capacity lithium battery hat enables immediate operation upon activation. The touchscreen displays real-time data, allowing operators to monitor particle concentrations at a glance. Ideal for environments with high dust and particulate levels including construction sites, roadworks, mining operations, ports, and industrial parks this equipment helps professionals promptly assess environmental conditions, implement effective dust control measures, and safeguard both public health and ecological safety.
Product features
The use of imported sensors for dust detection, fast response speed, high measurement accuracy and good stability;
Select and install heating and dehumidification system to prevent the impact of high humidity environment on data and ensure data accuracy;
Using large capacity lithium battery power supply, can be tested when turned on;l Equipped with LCD touch screen, can intuitively display detection data, peak data, historical data, etc.;
Provide a Chinese menu and a friendly human-computer interface;
Has the function of large capacity monitoring data storage;
Easy to operate, easy to maintain, with power failure protection function;
Supports 4G, USB, WIFI and other data transmission modes;
Built in GPS Beidou positioning system, can record the specific geographical location information of detection equipment.
Product functions
Real-time monitoring shows
By integrating advanced sensing and microprocessor technologies, the system accurately captures and detects PM2.5 fine particulate matter,PM10 inhalable particulate matter, and TSP (total suspended particulate matter)concentration data in the air.Real-time monitoring data is displayed on an LCD screen, allowing users to quickly grasp the current evels of dust and particulate matter in their environment.
out of limit alarming
When the concentration of dust and particulate matter in the air exceeds the set safety threshold, the alarm mechanism will be quickly started and the alarm information will be pushed to relevant personnel for timely handling of abnormal conditions.
Data management and analysis
Through the supervision cloud platform, real-time data, historical data, data export and other functions can be queried for in- depth monitoring and data analysis. In addition, the thermal printer can be selected to automatically print and batch print the monitoring data.

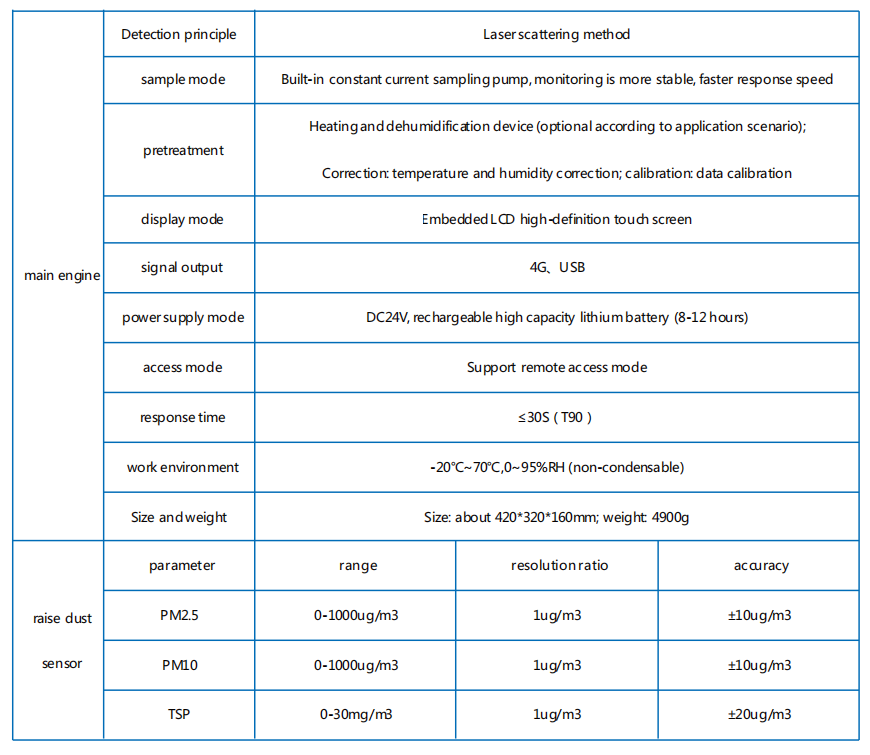

Product parameters
