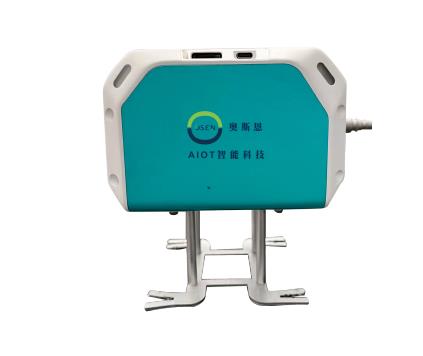

DRONE AIR QUALITY MONITOR
The UAV Air Quality Monitor is a professional and lightweight multi-gas monitoring system that can monitor air quality in real time. It can detect pollutants such as PM2.5, PM10, NO2, SO2, O3, and CO (monitoring items support optional selection and customization, and can be expanded or replaced later to meet different application needs).This product delivers accurate data support through its compact size, lightweight design, and low power consumption. It can be mounted on mobile platforms like drones to obtain real-time spatial distribution data of air pollution. Equipped with intelligent visualization software, it integrates real-time monitoring of parameters including latitude, longitude, altitude, PM2.5, PM10, CO, O3, SO2, NO2, and VOCs, along with 3D visualization displays. This provides an effective monitoring solution for comprehensive three dimensional air quality analysis.
Product features
Highly integrated with "five gases and two dusts", air pollution data can be collected through high-precision sensors to accurately reflect the actual situation of the atmosphere;
Supports the monitoring and data collection of large areas in a short time, greatly shortening the cycle of traditional monitoring methods;
With flexible flight capability and fast response speed, it can monitor and deal with emergencies at any time;
Aerial operations are unrestricted and can monitor areas that are difficult for people to reach;
Compared with traditional monitoring methods, it can greatly reduce the cost while improving the efficiency and effect.
System functions
Grid monitoring
Multiple monitoring grids are divided in the city, and one UAV is deployed in each grid for regular monitoring. Through high- frequency and close-range monitoring methods, all areas of the city are fully covered, and the air quality status of the whole city can be grasped in real time.
Key area inspection
Targeted inspection and monitoring will be carried out in key areas such as industrial parks, main traffic roads and construction sites.
Pollution monitoring
In the event of chemical leakage,explosion and other sudden environmental pollution accidents, drones can quickly arrive at the scene for monitoring.
Natural disaster response
After natural disasters such as earthquakes and floods, it is used to assess the impact of disasters on the environment. It monitors the air and water quality around the disaster area, prevents the occurrence of secondary disasters, and ensures the smooth progress of rescue work.
Data support
Through long-term monitoring and data analysis, it provides a scientific basis for the government to formulate air quality improvement plans and environmental protection policies.
Effectiveness evaluation
Assess the effectiveness of implemented environmental policies and governance measures. Compare historical data with current monitoring data to evaluate the actual effectiveness of policy measures and make necessary adjustments and optimizations.

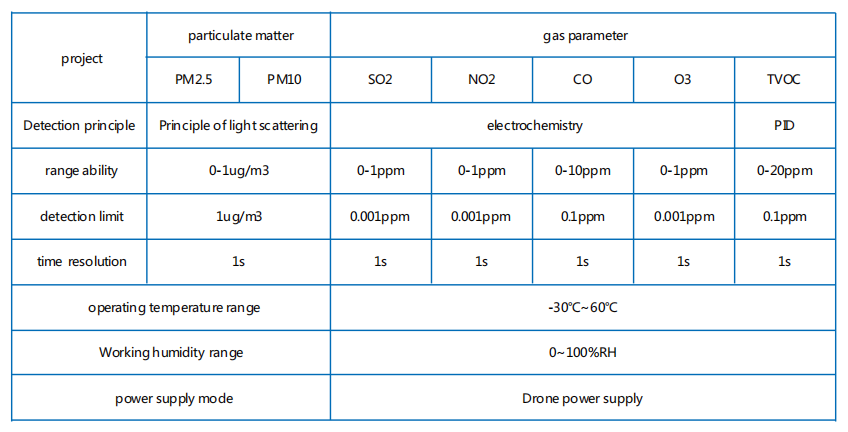

Technical parameters
