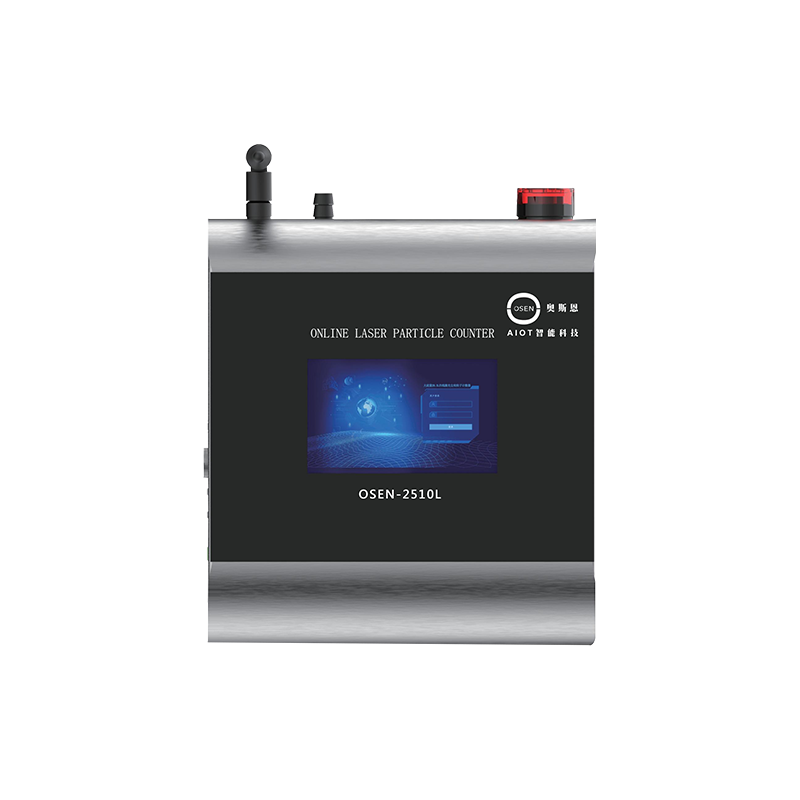

The OSEN-Z5101L Online Laser Dust Particle Counter is a precision instrument designed for cleanliness monitoring and micro-particle counting in clean environments. Utilizing light scattering technology, this device employs photoelectric sensing to detect particle size and count particles, with a minimum detection limit of 0.1μ m. It is suitable for Class 10 and Class 1 ultra-clean environments, including applications in electronics, semiconductor manufacturing, LCD panel production, micro/nano processing, aerospace, precision engineering, advanced materials research, and scientific laboratories.
Product features
High precision sensor, accurate counting, excellent performance, in line with ISO21501-4 specification requirements;
Integrated design, easy to install;
Equipped with 4.3-inch smart touch screen, real-time display and monitoring data;
Internal vacuum source, small vibration, low noise and stable performance;
You can directly set the instrument address on the screen, which is convenient for field replacement;
Screen data alarm, real-time monitoring of traffic and real-time self-adjustment of traffic;
Using 28.3L large flow sampling, the sampling accuracy and efficiency are greatly improved;
Long life imported semiconductor laser source, life more than 30,000 hours (annual calibration is required);
RS485 communication, support ModbusRTU protocol, support customized communication protocol;
Intelligent Internet of Things, can remotely start and stop, more accurate management of cleanliness level, improve the quality of cleanliness monitoring.

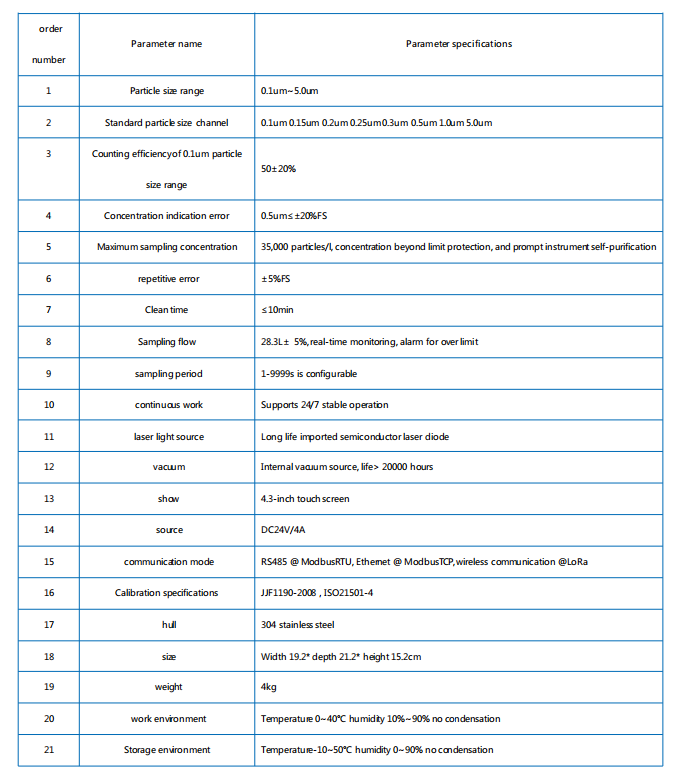

Product parameters
