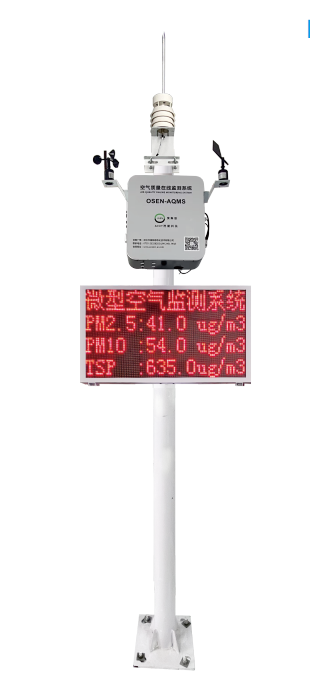

AIR QUALITY ONLINE MONITORING SYSTEM

The air quality online monitoring system is a monitoring device based on multi-parameter sensor technology and Internet of Things (IoT) architecture, which is used to detect the concentration of pollutants in ambient air in real time and continuously.It can monitor sulfur dioxide, nitrogen dioxide, ozone, carbon monoxide, PM2.5, PM10, VOC and other parameters all day long, continuously and automatically, and provide real-time change data. The air quality online monitoring system consists of a sensor module, data acquisition and processing unit, data transmission module, power supply system, and data analysis software. Widely used in urban air quality monitoring and industrial emission pollution detection, it simultaneously measures various environmental pollutants, particulate matter, and meteorological parameters in the air. With its high-precision measurements, real-time monitoring capabilities, data transmission efficiency, and

user-friendly installation/maintenance features, this system has become an ideal choice for environmental monitoring authorities conducting air quality assessments. Comprehensive management of unorganized emissions from pollution sources and reduction of air pollution. It provides reliable data and scientific support for decision making in energy conservation and emission reduction plans, as well as data and scientific basis for environmental protection departments to make environmental decisions, manage environmental affairs, and prevent and control pollution.

Using the global positioning system to track the equipment in real time;
Using imported high sensitivity sensor, fast response time,high resolution, up to the level of ppb;
It can provide convenient data query mode, and the data can be transferred to the computer through USB interface;
The supporting upper computer software can automatically calculate the daily average value, monthly average value, pollution index, generate graphic data table and print it;
Anti-jamming technology design, high precision, reliable performance, suitable for outdoor and industrial environ ment.

24/7 High-precision front-end sensors are used for all-weather monitoring of air quality.The data is updated frequently to reflect changes in various air quality parameters in a timely manner.

Multi-parameter monitoring

The system supports simultaneous integration of multiple sensors including particulate matter, SO , CO, NO .O voc, and meteorological parameters (temperature, humidity, wind speed, wind direction, and air pressure),enabling synchronized multi-parameter monitoring.
Constant temperature dynamic

The system dis ehequipped umidificatwith ion a dynamic heating dehumidification sampling module, effectively preventing humidity from affecting monitoring data. In high-humidity environments, moisture in sample gas may interfere with sensor operation and cause measurement errors.

GPS orientation system
The device is equipped with GPS positioning module, which uses global positioning system to record the real-time location information of the device and upload the real-time location information to the server. Users can also log in to our cloud platform and view the marked point of the device´s location on the GIS real-time map.
