Air quality is an important factor affecting our health in our daily lives. Especially in indoor environments, the content of formaldehyde and other harmful gases directly affects our quality of life. Many people are concerned about excessive formaldehyde levels after renovating a new house or purchasing a new car. At this point, a cost-effective indoor air quality monitoring device becomes particularly important. It can help us monitor the levels of harmful gases in the air in real time, allowing us to have a better understanding and peace of mind about our living environment.

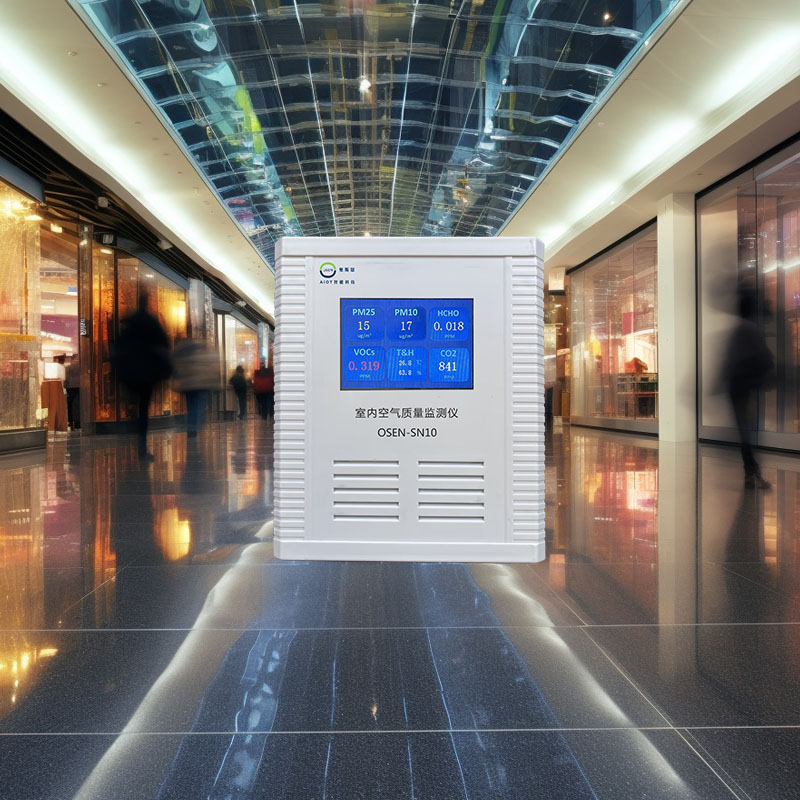

The Osen indoor environmental air quality monitor monitors real-time indoor air pollution indices such as PM2.5, PM10, noise, temperature and humidity, carbon dioxide, ozone, carbon monoxide, formaldehyde, etc. It has been applied in homes, gyms, commercial centers, shopping malls, smart classrooms, offices, hospitals, schools, apartments, villas, residences, airports, subway stations, stations, restaurants, hotels, guesthouses, postpartum centers, nursing homes, cinemas, museums, libraries, etc.
Basic parameters
Shell: Supports wall mounting and ceiling mounting, overall elegant, beautiful and simple
Communication interface: RJ45/4G (choose 1 from 2), RS485, SD card, relay
Communication transmission: 4G/Ethernet (choose 1 from 2), WIFI, Bluetooth, serial port
Communication protocol: HJ212, Modbus
Power supply mode: DC12V/2A
Display screen: Adopting a 3.2-inch LCD screen
Main monitoring parameters: temperature, humidity PM1、PM2.5、CO2、CO、 Formaldehyde, VOC
Low power consumption usage, power consumption: 2W
Functional parameters
The device networking method supports Ethernet/4G IoT network card (full network), WIFI and other methods to provide network access for the device
Device support protocols: MODBUS RTU, HJ212-2017 (other customizable)
Real time display of monitoring data on the screen, refreshing once every 2 seconds; Can display network signals; Time display; Parameter status (normal green, displaying red when exceeding the threshold)
Users can read device data through the serial port using the standard MODBUS protocol;
The computer can configure the parameters of the device by connecting it to the serial port and using the corresponding application program, including parameter alarm threshold, wifi configuration, Bluetooth configuration, Ethernet configuration, MODBUS configuration, 212 protocol push server settings, etc
Equipped with relay modules that can be linked to peripheral devices such as fans;
The local SD card can support up to 256GB of memory and can store monitoring data
Function expansion
Standard products can monitor temperature, humidity PM1、PM2.5、CO2、CO、 Formaldehyde, VOC; can increase negative oxygen ions, light intensity, noise, etc
Can be used as a linkage controller
Can be used as an audio collection terminal, indoor motherboard+recording board+audio collection microphone (to be verified)
