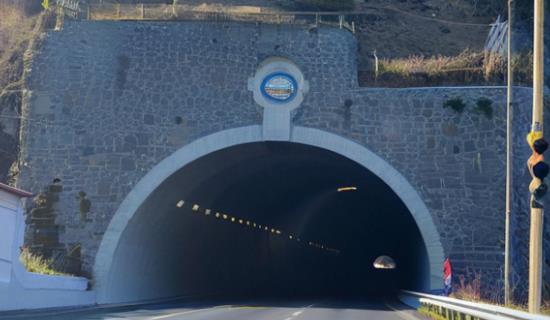

Background of using high-speed tunnel dust monitoring station
As a key node in the transportation network, high-speed tunnels have high traffic volume, enclosed space, and relatively limited ventilation conditions. During vehicle travel, friction between tires and road surfaces, exhaust emissions, and material scattering during cargo transportation can easily generate a large amount of dust. These dust particles not only reduce visibility inside the tunnel, interfere with the driver?s line of sight, increase the risk of traffic accidents, but also cause damage to the respiratory systems of passing drivers and passengers. At the same time, they accelerate the aging and corrosion of equipment inside the tunnel, affecting its service life and operational safety.
Traditional dust monitoring relies heavily on manual inspections or regular sampling at designated locations, which not only has low efficiency and lagging data, but also makes it difficult to grasp the dynamic changes in dust concentration inside tunnels in real time, and cannot take effective dust reduction measures in a timely manner for sudden high concentration dust situations. With the continuous growth of traffic flow and the increasing requirements for tunnel operation safety and environmental protection, high-speed tunnel dust monitoring stations have emerged to achieve real-time monitoring and accurate warning of dust concentration in high-speed tunnels, ensuring traffic safety and environmental quality.
Product Introduction

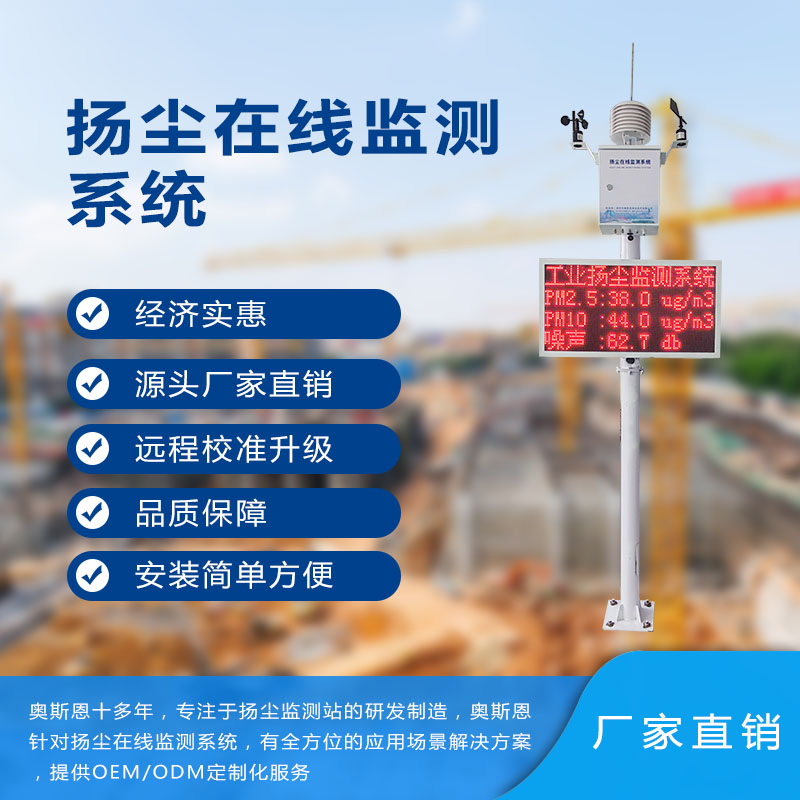

The OSEN-6C dust online monitoring system has passed the testing and certification of Beijing Institute of Metrology, and has obtained the National Environmental Protection Product Certification (CCEP Certification) and the Measurement Instrument Type Approval Certificate (CPA Certification). The system complies with the provisions of GB3095-2012 "Environmental Air Quality Standards" and is a dust monitoring equipment that can continuously and automatically monitor different environmental functional areas and key dust monitoring areas, and has complete functions; It consists of four parts: particle online monitoring device, preprocessing system, data acquisition and transmission system, backend data processing system, and information monitoring and management platform. The system integrates Internet of Things, big data, and cloud computing technologies, and achieves real-time, remote, and automatic monitoring of particulate matter concentration through devices such as light scattering online monitoring instruments and data collection and transmission; The data can be accessed on multiple terminals such as smart mobile platforms and desktop PCs through 4G network transmission/RJ45 transmission; The monitoring platform also has various statistical and high concentration alarm functions.
Product parameters
Product Features
The product sensor has obtained the national CPA type approval certificate for measuring instruments.
The product undergoes real-time online continuous testing, with precise data and direct reading. The product comes with a built-in display screen that enables direct reading of measurement data, making it convenient for users to view the measurement medium at any time. The measurement medium range is wide, and the product range is large, with customizable ranges of 0.01-30mg/m * and 0.01-100g/m Strong scalability, capable of adding temperature, humidity, oxygen content and other parameter sensors to continuously control the on-site environment.
IP65 protection level chassis, dustproof and waterproof, can operate for a long time in high pollution environments in tunnels. The product is designed as an integrated unit, integrating dust sensors, data acquisition devices, data transmission units, digital display screens, and sound and light alarms. The structure is compact and easy to install.
The standard bus RS485 and RJ45 signals are output simultaneously, which can be connected to the upper computer and cloud platform for real-time monitoring. One local sound and light alarm, four relay switch outputs, can be directly connected to equipment such as fans, fog cannons, solenoid valves, alarms, etc., or can drive high-power equipment by driving intermediate relays.
Can be connected to various secondary display devices, data acquisition modules, PLCs, DCS systems.
